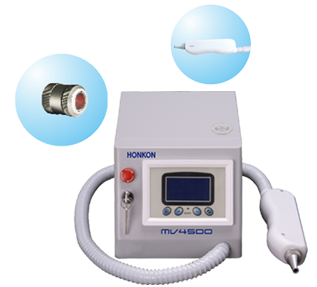

Q-Switched Nd:YAG Laser
Pmise-MV4500
- 1. Cost effective.
- 2. Portable and smart design.
- 3. The Q-switched Nd:YAG laser radiates the light with a specific wavelength in high peak energy pulse.
- 4. Hence the light penetrates the tissue only for an ultra-short nanosecond.
- 5. The light is absorbed by the pigment tissue and results in an instantaneous blast, that is Light blasting principle.
Treatment Theory
The Q-switched Nd:YAG laser radiates the light with a specific wavelength in high peak energy pulse; hence the light penetrates the tissue only for an ultra-short nanosecond. The light is absorbed by the pigment tissue and results in an instantaneous blast, that is Light blasting principle. The pigment particles are shattered into fragments, parts of them will be bounced out of the skin and other parts will be split into tiny particles that can be engulfed by phagocytes and then metabolized by the lymphatic system.
Application
1. Tattoos (black, red, brown, blue, etc.)
Tattoo eye line,tattoo eyebrow
2. Pigmented lesions:
Sunspot, Age spots, Nevus, Freckle
3. Laser facial:
Skin rejuvenation, fine wrinkles and expression lines removal, pore firming, lighten spots, blackTip removal, oil control
Advantages
1. LED light for quick recovery after treatment.
2. Metal shell ensures the heat radiating.
3. The Q-switched Nd:YAG laser radiates the light with a specific wavelength in high peak energy pulse.
4. Hence the light penetrates the tissue only for an ultra-short nanosecond.
5. The light is absorbed by the pigment tissue and results in an instantaneous blast, that is Light blasting principle.
Specification
| Laser Type | Q-switched Nd:YAG laser |
|---|---|
| Spot Diameter | 1-5mm continuously adjustable |
| Cooling | Water& Air |
| Energy | 180-200mj |
| Wavelength | 1064nm, 532nm |
| Pulse Width | 10ns-20ns |
| Frequency | 1-5Hz |
| Input Power | 420W |
| Power Supply | AC 220V 50Hz; |
| Insurance Standard | Max10A |
| Net Weight | 8kg |
| Gross Weight | 11kg |
| Dimensions (before packaged) | 36×21×23cm3 |
| Dimensions (after Packaged) | 49.5×40×29 cm3 |
