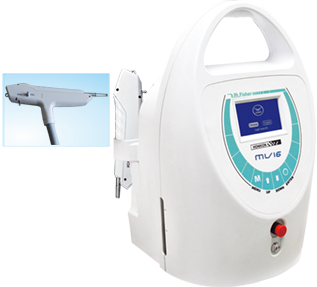

Pmise-MV16

Q-Switched Nd:YAG Laser

Pmise-MV16

  • Top-homogeneous beam (different from Gauss and Flat-Top mode) to avoid excessive epidermis damage.
  • 8ns single pulse width and 800mj single pulse energy ensures an effective removal of all pigmented lesions.
  • Two kinds of square spot size (2mmx2mm, 3mmx3mm) for precise treatment.
  • The Q-switched Nd:YAG laser radiates the light with a specific wavelength in high peak energy pulse,hence the light penetrates the tissue only for an ultra-short nanosecond.

Treatment Theory

The Q-switched Nd:YAG laser radiates the light with a specific wavelength in high peak energy pulse; hence the light penetrates the tissue only for an ultra-short nanosecond. The light is absorbed by the pigment tissue and results in an instantaneous blast, that is Light blasting principle. The pigment particles are shattered into fragments, parts of them will be bounced out of the skin and other parts will be split into tiny particles that can be engulfed by phagocytes and then metabolized by the lymphatic system.

Application

1. Tattoos (black, red, brown, blue, etc.)

Tattoo eye line ,tattoo eyebrow

2. Pigmented lesions:

Sunspot, Age spots, Nevus, Freckle

3. Laser facial:

Skin rejuvenation, fine wrinkles and expression lines removal, pore firming, lighten spots, blackTip removal, oil control

Advantages

1. Top-homogeneous beam (different from Gauss and Flat-Top mode) to avoid excessive epidermis damage.

2. 8ns single pulse width and 800mj single pulse energy ensures an effective removal of all pigmented lesions.

3. Two kinds of square spot size (2mmx2mm, 3mmx3mm) for precise treatment.

Specification

Laser TypeQ-Switched Nd:YAG laser
Output Energy800mj @1064nm (single pulse);
Frequency1-5Hz
Spot Size2mmx2mm, 3mmx3mm
Screen Size12.1" TFT Touch Screen
