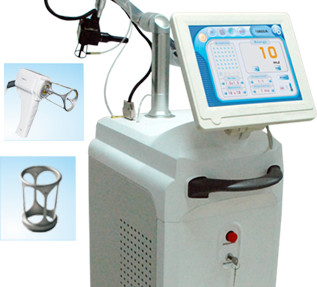

Pmise-10600IL

Ultrapulse CO2 Fractional Laser (10600nm)

Pmise-10600IL

  • Low cost effective,
  • Easy maintenance
  • Elegant and beautiful design.
  • High effective ventilation enables the operation around-the-clock.
  • Fractional laser penetrates skin and forms tiny thermal channels.

Treatment Theory

Fractional laser penetrates skin and forms tiny thermal channels. This creates some ablative and thermal effect only on these channels (a micro-injury) without damaging the surrounding tissue. The tissues surrounding the micro-injuries (about 15-20% of the treatment area) start the healing process. As the collagen remodels, the skin is tightened, scars and pigmented lesions are improved as well

Application

1. Application Range of Fractional Mode:

a. large pores, fine lines, skin tightening and whitening, skin loosen, deep wrinkles, stretch marks;

b. various scars: burnt scars, acne scars, surgical scars and Keloid;

c. pigmented skin lesions: Chloasma, freckles, age spots, sun spots, CAMLS;

d. reconstruction of photo-aging skin.

2. Application Range of CW and Ultra-pulse modes:

In cosmetic surgery, it can be adopted to incisions for Blepharoplasty, skin tags and ingrown nails, compound Nevus and intra dermal Nevus etc.

Advantages

1. Low cost effective,

2. Easy maintenance

3. Elegant and beautiful design.

4. High effective ventilation enables the operation around-the-clock.

Specification

Laser TypeGlass Tube CO2 Laser
Wavelength10600nm
Focal Spot Number6x6, 12x12, 24x24
Output Power30W
Laser Operating ModeCW, UP, CPG
Pulse Width0.067ms-0.67ms
Spot Size150μm-500μm
Scanning ModeSequential / Randomized Scanning
Pulse Power2mj-200mj
Pulse Interval1ms-100ms (Step 1ms)
Spot GraphicTriangle/ Square/ Rectangle / Rhombus / Round/ Line
Beam Delivery7-joint arm
Spot Density6x6 spots/cm², 12x12 spots/cm², 18x18 spots/cm², 24x24 spots/cm²
Scan Area1 cm x1 cm, 2 cm x2 cm, 3 cm x3cm
Insurance StandardMax10A
CoolingAir& Water
