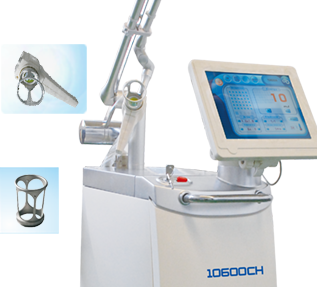

Ultrapulse CO2 Fractional Laser (10600nm)
Pmise-10600CH
- Three output modes: CW, UltraPulse and Fractional.
- The COHERENT RF-excited metal laser system enables the output quality to be more stable, more uniform and more consistent, (compared to ordinary CO2 laser with glass tubes)
- Sunny scanner uniforms focal spot quality.
- The spots size is adjustable according to different treatment area.
- Various spot volumes are suitable for different treatment areas which maximally avoids the side-effect that result from the overlapping of the spot, reducing the pain during treatment, satisfies different therapists' unique requests.
Treatment Theory
Fractional laser penetrates skin and forms tiny thermal channels. This creates some ablative and thermal effect only on these channels (a micro-injury) without damaging the surrounding tissue. The tissues surrounding the micro-injuries (about 15-20% of the treatment area) start the healing process. As the collagen remodels, the skin is tightened, scars and pigmented lesions are improved as well
Application
1. Application Range of Fractional Mode:
a. large pores, fine lines, skin tightening and whitening, skin loosen, deep wrinkles, stretch marks;
b. various scars: burnt scars, acne scars, surgical scars and Keloid;
c. pigmented skin lesions: Chloasma, freckles, age spots, sun spots, CAMLS;
d. reconstruction of photo-aging skin.
2. Application Range of CW and Ultra-pulse modes:
In cosmetic surgery, it can be adopted to incisions for Blepharoplasty, skin tags and ingrown nails, compound Nevus and intra dermal Nevus etc.
Advantages
Three output modes: CW, UltraPulse and Fractional.
The COHERENT RF-excited metal laser system enables the output quality to be more stable, more uniform and more consistent, (compared to ordinary CO2 laser with glass tubes)
Sunny scanner uniforms focal spot quality.
The spots size is adjustable according to different treatment area.
Various spot volumes are suitable for different treatment areas which maximally avoids the side-effect that result from the overlapping of the spot, reducing the pain during treatment, satisfies different therapists' unique requests.
Compared with the traditional Glass tube CO2, RF excited CO2 lasts much longer time.
Specification
| Laser Type | COHERENT RF-excited CO² Laser |
|---|---|
| Wavelength | 10600nm |
| Output Power | 30W/20W/10W (optional) |
| Laser Operating Mode | UP, CW, CPG |
| Pulse Width | 0.067ms-0.67ms |
| Spot Size | 80μm-2000μm (decided by zoom lens) |
| Scanning Mode | Sequential / Randomized Scanning |
| Pulse Power | 2mj-200mj |
| Pulse Interval | 1ms-100ms (Step 1ms) |
| Spot Graphic | Triangle/ Square/ Rectangle / Rhombus / Round ( can be updated to DIY Graphic) |
| Beam Delivery | 7-joint arm |
| Spot Density | 6x6 spots/cm², 12x12 spots/cm², 18x18 spots/cm2, 24x24 spots/cm² |
| Scan Area | 1cm x1cm, 2cm x2cm, 3 cm x3cm |
| Insurance Standard | Max10A |
| Cooling | Air Cooling |
| Net Weight | 65kg |
| Gross Weight | 84kg |
| Dimensions (before package) | 83x53x103cm3 |
| Dimensions (after package) | 58x39x51cm3 |
