Long Pulse Nd:YAG laser for Fungus

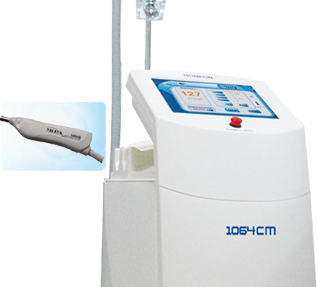

Pmise LN-03
- Super compressor cooling system ensures long working time
- User-friendly operation interface.
- Direct energy output, less energy lost
- Long Pulse Nd:YAG Laser(1064&532nm) is selectively absorbed by hemoglobin and melanin of hair follicle which has less effect on surrounding normal tissue. With sufficient energy density, it can damage the target blood vessel and follicle tissue.
Overview
The Pmise LN-03 is a long-pulse Nd:YAG laser built for professional aesthetic clinics that need one platform to treat vascular lesions, perform laser hair removal, and support skin rejuvenation. Its 1064nm output reaches deeper structures in the skin than shorter wavelengths, which is why long-pulse Nd:YAG systems are also grouped with the Long Pulse Nd:YAG laser for Fungus line, where deep, targeted heating is the goal.
This is professional equipment intended for use by trained operators in a clinical setting. It pairs a direct energy output design with an active cooling system so a clinic can run steady treatment sessions while keeping the epidermis protected. Buyers comparing pulse formats will find a plain breakdown in our guide on long-pulse versus Q-switched Nd:YAG.
How It Works
The Pmise LN-03 works on the principle of selective photothermolysis, the mechanism described by Anderson and Parrish in 1983. The idea is simple: choose a wavelength that a target absorbs strongly, then deliver energy in a pulse short enough to heat that target without letting the heat spread into surrounding tissue.
At 1064nm, the laser light is absorbed selectively by hemoglobin in blood vessels and by the melanin in the follicular bulb and the prominent part of the hair follicle, while nearby normal tissue absorbs very little. Because 1064nm penetrates through the epidermis, the energy can reach the target vessel or follicle at depth. With sufficient energy density the beam damages the intended vascular or follicular tissue, and steady epidermal cooling makes it possible to use that higher energy while helping to protect the skin surface.
The LN-03 uses a direct energy output path rather than fiber delivery, so less energy is lost between the source and the treatment area. A compressor-based cooling system supports long, stable working sessions instead of forcing frequent pauses.
Applications
The Pmise LN-03 suits clinics and distributors serving skin and vascular treatment demand, and it is designed to be handled by trained operators. Because 1064nm penetrates deeper and is less absorbed by surface melanin, long-pulse Nd:YAG is often chosen for darker skin where other wavelengths carry more risk. Typical applications include:
- Vascular lesion treatment, including small telangiectasia (see our single telangiectasis solution)
- Laser hair removal, with long-pulse 1064nm well suited to Fitzpatrick skin types IV to VI
- Skin rejuvenation support
For a fuller view of the range this platform belongs to, see the Long Pulse Nd:YAG laser for Fungus category.
Key Advantages
- Direct energy output: energy acts on the treated area directly, avoiding the loss associated with fiber delivery, so more of the set energy reaches the target.
- Strong cooling for long sessions: a powerful compressor cooling system supports extended continuous working time, and handle-side cooling helps keep the epidermis comfortable during treatment.
- Adjustable spot sizes: selectable spot diameters let the operator match the treatment area and adapt to different indications.
- User-friendly interface: a straightforward operation screen shortens the learning curve for clinic staff.
- Built for clinical use: classified as a Class 4 laser system, it is designed for trained professionals working under proper safety protocol.
Specification
| Laser Type | Long Pulse Nd:YAG Laser |
|---|---|
| Frequency | 0.5Hz, 1Hz |
| Laser Wavelength | 1064nm, 532nm (optional) |
| Energy Density | Max 360J/cm² (1064nm) |
| Pulse Width | ≤10ms |
| Pulse Number | ≤10T |
| Spot Diameter | 4mm, 6.5mm |
| Pulse Delay | 1-10ms |
| Cooling | Constant Condenser |
| Power supply | AC220V±10%, 50Hz; |
| Insurance Standard | Max5A |
| Input Power | 1900W |
| Net Weight | 30kg |
| Dimensions (after Packaged) | 66×56×89cm3 |
FAQ
What conditions is the Pmise LN-03 used for?
It is a long-pulse Nd:YAG platform used mainly for vascular lesion treatment, laser hair removal, and skin rejuvenation support. The 1064nm wavelength reaches deeper targets such as blood vessels and hair follicles while sparing much of the surrounding tissue. As with all aesthetic lasers, suitability depends on the patient assessment carried out by the treating professional.
Which skin types can it treat?
Long-pulse 1064nm is often selected for darker skin because it is absorbed less by surface melanin and penetrates deeper, which lowers the risk to the epidermis. For hair removal it is well suited to Fitzpatrick skin types IV to VI. The operator should still assess each patient and rule out the listed contraindications before treatment.
How many sessions are needed?
The number of sessions varies with the indication, the treatment area, and the individual response, so no fixed count applies to every patient. Hair removal and vascular work typically involve a course of several treatments spaced apart. A trained operator should set expectations and the treatment plan case by case rather than promising a guaranteed result.
Do operators need training and is support available?
Yes. The LN-03 is professional Class 4 laser equipment and must be operated by trained staff following eye protection and safety protocol. Pmise provides operator training and after-sales technical support, and warranty terms cover defects in normal use. Contact us for the current warranty period and training details for your region.
